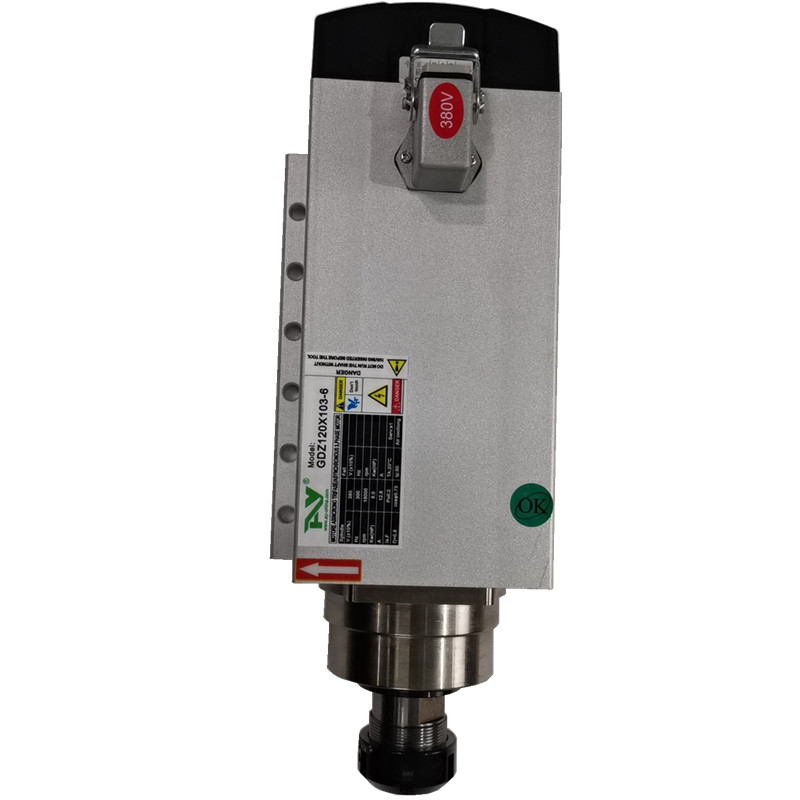

型號Spindle type: GDZ120X103-6
1.轉速Rev(rpm):18000
2.功率Power(kw):6
3.電壓Voltage(V):220/380
4.電流Current(A):22/12.6
5.頻率Frequency(HZ):300
6.風冷Cooledby air
7.軸承型號Bearing type:2×7008C P4
2×7004C P4
8.油脂潤滑Lubricate：grease
9.夾帽Collet(mm):ER32
10.保修Repair time:bearing(half year),spindle(one year)
11.長度/寬度/高度Length/b/hight(mm):371/103/120
12.balance test result(ms*s):2.4rpm<5
13.L(mm):371,L1(mm):40,L2(mm):60,L3(mm):60,L4(mm):36,
L5(mm):91,L6(mm):103,H(mm):146, H1(mm):60
14.重量weight（kg）:15KG
15.品牌Brand:韓國AY
